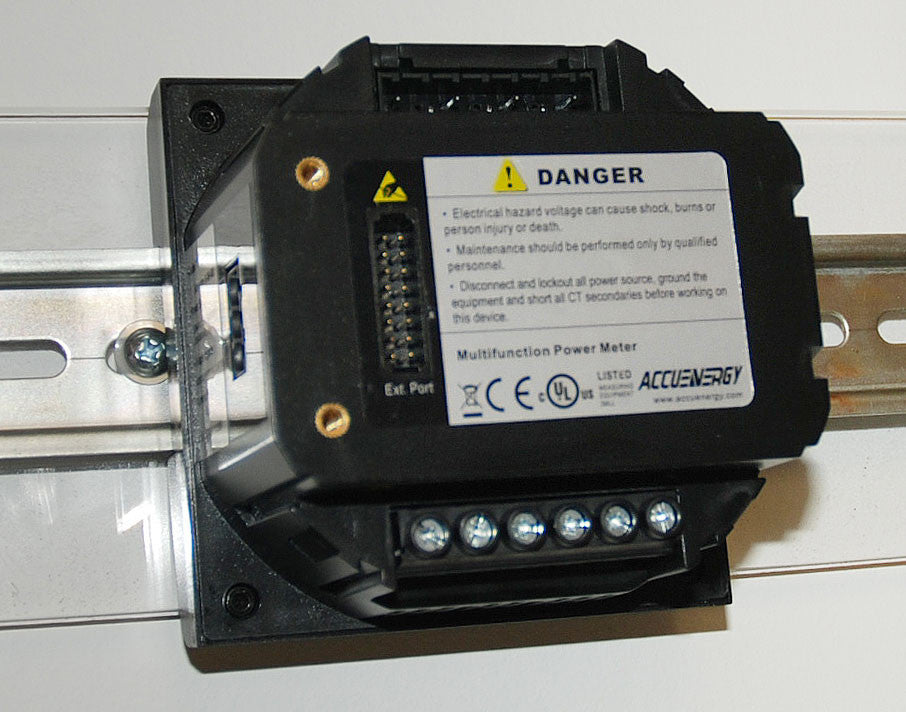

Acuvim IIR-M DIN Rail Mount power meter is a revenue grade power meter with on-board datalogging that can be used to meter & monitor power consumption at electrical panels and energy consuming devices or systems. It offers a wide array of communications options and standard MODBUS communications via a built-in RS485 port. This meter can also be used in conjunction with the free Acuview PC software for remote communications and control. This model does not have a display.

Since the Acuvim IIR-M is 0.2% accuracy and meets the ANSI C12.20 standard for revenue grade meters so it can also be used for tenant sub-metering applications.

With so many features for the low price, the Acuvim IIR-M offers unbeatable value.

Measurements
Acuvim IIR-M power meters can be used on any single or three phase electrical system up to 600V AC. Measurement parameters include volts, amps, frequency, power (apparent, active, reactive) & energy, power factor, peak demand, run time, THD and individual harmonics on both voltage and current to the 63rd harmonic.

Datalogging
The Acuvim IIR-M power meter has datalogging capabilities and can store up to 4MB of data.

Communications
There are four optional field upgradeable plug-in communications modules for the Acuvim IIR-M DIN Rail Mount power meter. These modules include analog I/O ports, digital I/O ports, Ethernet, or relays.

The table below shows which input/outputs are available on which modules:

Module	Digital In (DI)	Power for DI	Digital Out (DO)	Relay Out (RO)	Analog In (AI)	Analog Out (AO)
AXM-IO1	6	1		2
AXM-IO2	4		2			2
AXM-IO3	4			2	2

In addition, there are three communication modules for the Acuvim IIE - AXM-PROFI for PROFIBUS communication, AXM-NET for ethernet communications and the AXM-RS485 for an additional MODBUS RS485 communication port.

The Ethernet communications module enables MODBUS communication over Ethernet, plus offers configurable email alarms/alerts and a built-in web server for real-time data access through an Internet browser.

A total of 3 external modules can be stacked and used together with each Acuvim IIR-M DIN Mount meter. All modules are self-detecting and can be configured through the through Acuview Software.

Software
Acuvim IIR models are compatible with Acuview Software and communicate via MODBUS communications protocol using either the built-in RS485 serial port or the optional AXM-NET Ethernet Module. Acuview Software enables remote meter access for real-time monitoring and local PC-based datalogging. You can download a demo copy of Acuview software - instructions for installing and using the demo software are in this PDF document.

Watch a video demo of Acuview software.

Acuview software is a PC-based data logging and reporting software designed to extend the capabilities of any Acuvim power meter that uses RS485 or Ethernet communications. Best of all, the software is completely free!

Warranty & Approvals
Acuvim IIR meters are UL listed for use throughout North America and come with a 5 Year manufacturer's warranty.
