The AEMC 4620 Digital Ground Resistance Tester performs ground resistance and soil resistivity tests.  This direct reading tester measures from 0 to 2000Ω, and is autoranging, so that it can automatically seek out the optimum measurement range.

Easy-to-use — simply connect the leads, Press-to-Measure and read the results.  The large LCD (nearly 3/4" high characters) is easy-to-read, and also indicates low battery status, overrange and test lead shorts and lead reversals.  Three LED indicators on the front panel continuously warn the user of measurement problems to ensure accurate and reliable tests.

The AEMC 4620 Digital Ground Resistance Tester is fuse protected up to 250VAC against accidental connection to live circuits. In the event of a system fault, it can withstand 250VAC with spikes of 3000VAC or 1000VDC.

The heavy-duty field case is sealed against dust and water when closed.  The meter itself is self-contained within an inner case providing additional environmental and insulation protection. The test button is also sealed against the elements.

This tester is powered by eight, C cell batteries and will perform over 2000 - 15 second tests between battery replacement.  The AEMC 4620 Ground Resistance Tester is a rugged, easy-to-use instrument ideal for maintenance crews performing numerous tests. The AEMC 4620 exceeds mechanical and safety specifications for shock, vibration and drop tests called out in IEC standards. Designed to reject high levels of interference, so it can be used under difficult conditions such as high stray currents that normally affect accuracy.

Applications:

• Three-Point measurements of resistance to ground of ground rods and grids.  Three-Point measurements are generally used when the electrode or grid can be easily disconnected, if corrosion is suspected, or in circumstances where ground faults are unlikely to occur
• Four-Point tests or soil resistivity measurements. Locating areas of lowest soil resistivity is essential for achieving an economical grounding installation
• Touch potential measurements, an alternative to 3-Point tests in evaluating electrical safety. This test is recommended when the ground cannot be disconnected, where ground faults are highly likely to occur, or when the "footprint" of grounded equipment is comparable to the size of the ground to be tested.
• Two-Point tests for continuity tests on bonding or on pre-established grounds. This test is commonly performed in urban environments where proper auxiliary electrode placement may be obscured by confined real estate. Measurements
  are referenced against a good local ground conductor.

Purchase the AEMC 4620 as a standalone unit or with the available kits below:

AEMC 4620 Kit -150ft - Digital Ground Resistance Tester Kit - 150ft
AEMC 4620 Kit -300ft - Digital Ground Resistance Tester Kit - 300ft

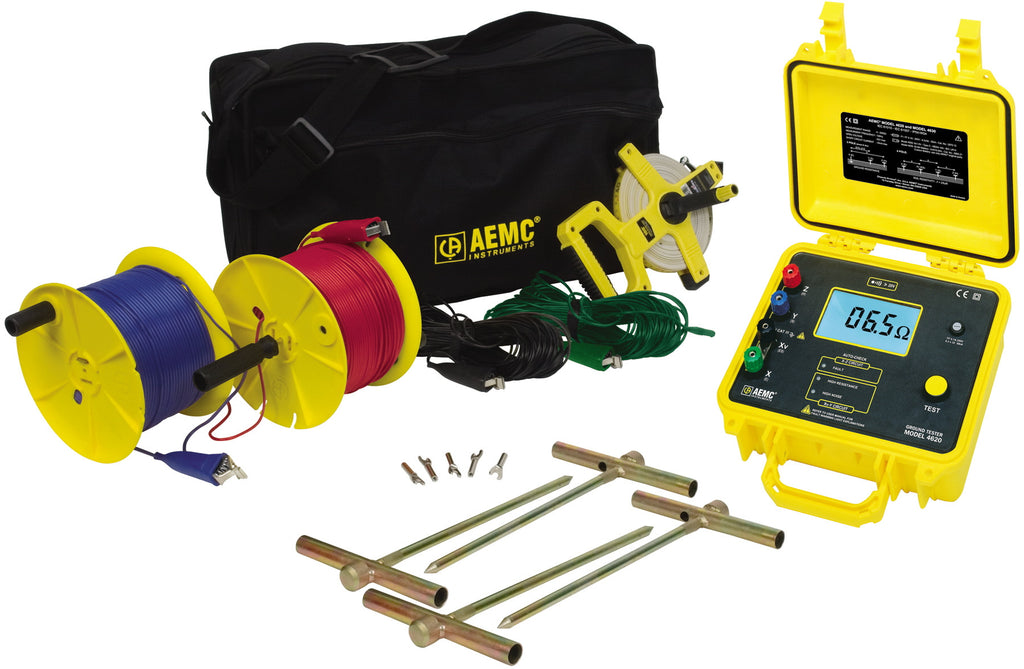

• Meter
• Eight C cell batteries
• User manual
• Two - 500 ft color-coded leads on spools (red and blue)
• Two - 100 ft color-coded leads (green and black)
• One - 30 ft lead (green)
• Four - 14.5" T-shaped auxiliary ground electrodes
• One set of five spaded lugs
• 100 ft tape measurer

• And carrying bag.
