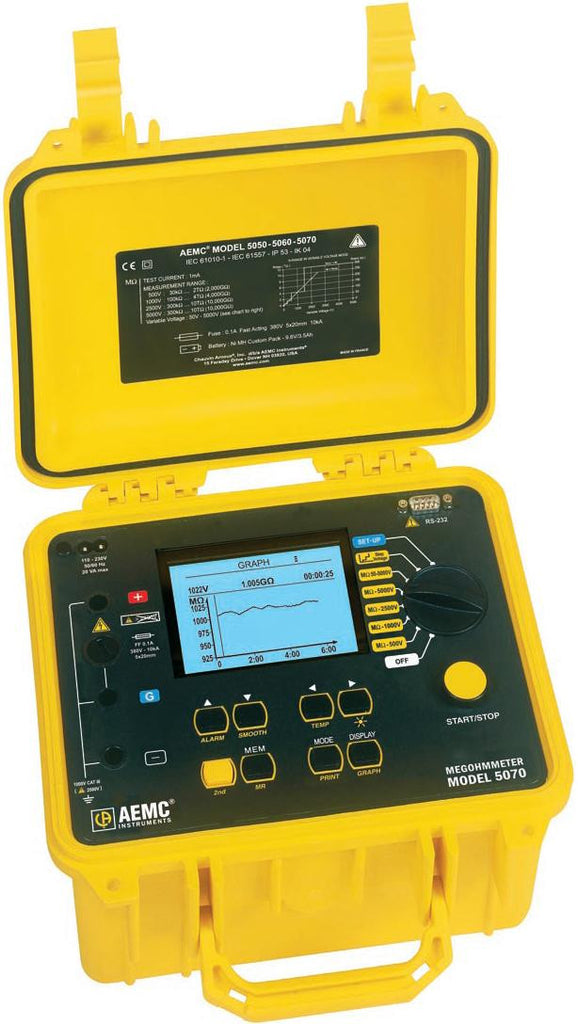

The AEMC 5070 5000V Megohmmeter is a fully automated 5000V graphical insulation tester.  Selectable and programmable test voltage (40 to 5100V). P rogrammable temperature correction of resistance readings.

The AEMC 5070 is the only megohmmeter to offer both a graphical plot of the test right on the instruments, as well as a digital presentation of the test results. It has a large graphic display with five line alphanumeric display and graph. It also offers the ability to program up to three step voltage profiles, each containing up to five steps.

The AEMC 5070 has an RS-232 port which provides the ability to configure the unit and run the test from a PC. Test results can be generated directly to a printer using the DataView® graphing and analysis software.

Applications:

• Test insulation on cables, transformers, motors, generators, insulators and wiring installations
• High resistance or absorption tests
• Spot reading tests
• Timed resistance measurements
• Dielectric Absorption Ratio (DAR) and Polarization Index (PI) tests
• Multi-layer insulation testing (DD)
• Test old or water damaged installations over long time runs
• Motor insulation resistance measurements
• Computer controlled production line testing
• Predictive maintenance by storing results in PC for trend analysis
• User selectable voltage testing to provide application specific testing

• Three leads with integral 5kV rated hippo clips (red, blue and black)
• One jumper lead for use with guard terminal
• Rechargeable battery
• US 120V power cord
• Soft accessory bag
• User manual
• PC RS-232, DB9 F/F 6 ft null modem cable
• DataView® software.
