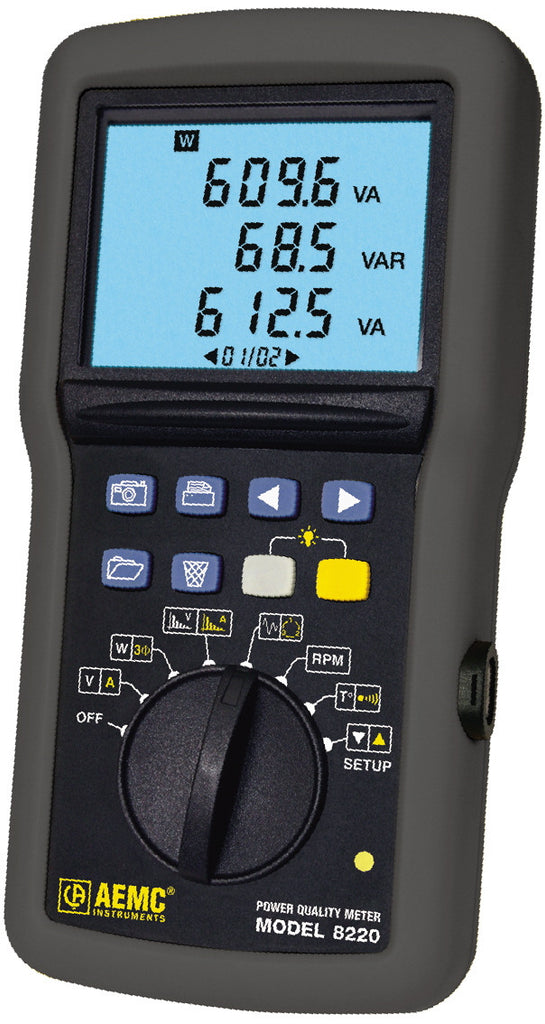

AEMC 8220 Single Phase Portable Power Analyzer

AEMC 8220 Single Phase Power Analyzer is a measurement tool for electrical parameters and distribution network disturbances, enabling the user to obtain instant measurements of the main characteristics of a single-phase network (voltage, current, power, voltage and current harmonics, etc.) and to monitor machinery in operation (temperature, inrush current and duration of operation, distance of windings and rotational speed).

AEMC 8220 is capable of AC + DC measurements and features an electroluminescent backlit digital display and is rated to 600V Cat III.

The AEMC 8220’s accuracy is better than 1% (excluding current sensors). It has a great flexibility due to AEMC’s range of current sensors, measuring from a few hundred milliamps to several thousand amps. See the available kits below that include current transformers.

The 8220 Single Phase Power Analyzer is designed for technicians, control and maintenance engineers, as well as electrical contractors and educators.

Applications:

• Measurement and recording of power system quality (kW, VA, VAR)
• Energy metering (kVAh, VARh, kWh)
• Motor start-up analysis
• Measure RPM
• Determine phase rotation
• Detect hot spots (temperature) in wiring and equipment
• Verification of power distribution circuits
• In plant troubleshooting of power distribution panels and individual machinery

Includes:

• Set of two 10 ft (3m) color-coded leads (red/black) with alligator clips
• Set of safety test probes (red/black)
• Optically isolated USB cable
• Set of six 1.5V AA batteries
• DataView® software FREE for data storage, real-time waveform display, analysis and report generation
• Carrying bag
• Product warranty card and user manual.
