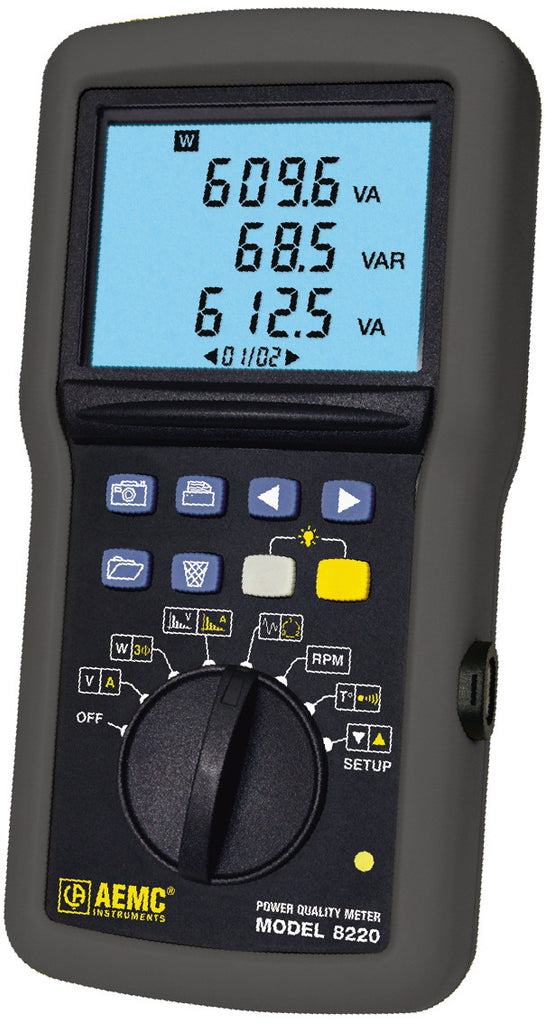

AEMC 8220 Single Phase Power Analyzer with MN193-BK CT (6A/120A)

The AEMC 8220 Power Analyzer is a single-phase AC + DC power meter with an electroluminescent backlit digital display and is rated to 600V Cat III.

It is a measurement tool for electrical parameters and distribution network disturbances, enabling the user to obtain instant measurements of the main characteristics of a single-phase network (voltage, current, power, voltage and current harmonics, etc.) and to monitor machinery in operation (temperature, inrush current and duration of operation, distance of windings and rotational speed).

The AEMC 8220’s accuracy is better than 1% (excluding current sensors). It has a great flexibility due to AEMC’s range of current sensors, measuring from a few hundred milliamps to several thousand amps.

The AEMC 8220 Single Phase Power Analyzer is designed for technicians, control and maintenance engineers, as well as electrical contractors and educators.

This AEMC 8220 includes MN193 with a black 6A/120A clamp-on current probe.  See the list below for additional kits with different current transformers available.

Applications:

• Motor start-up analysis
• Determine phase rotation and motor RPM
• Detect hot spots in wiring and equipment
• Verification of power distribution circuits
• Measurement and recording of power system quality (kW, VA, VAR)
• Energy metering (kVAh, VARh, kWh)
• In plant troubleshooting of power distribution panels and individual machinery

Purchase the AEMC 8220 alone or with the available Current Transformers below:

• AEMC 8220 w/ 193-24-BK - includes Ampflex 193-24-BK 24" flexible current transformer (6500A)
• AEMC 8220 w/ 193-36-BK - includes Ampflex 193-36-BK 36" flexible current transformer (6500A)
• AEMC 8220 w/ MN93-BK - includes MN93-BK clamp-on current transformer (200A)
• AEMC 8220 w/ MR193-BK - includes MR193-BK clamp-on current transformer (1000AAC/1400ADC)
• AEMC 8220 w/ SR193-BK - includes SR193 clamp-on current transformer (1200A)

Includes:

• PowerPad Model 8220,
• One MN193 (6A/120A) current probe (black connector)
• Set of two 10 ft (3m) color-coded leads (red/black) with alligator clips
• Set of safety test probes (red/black)
• Optically isolated USB cable
• Set of six 1.5V AA batteries
• DataView® software FREE for data storage, real-time waveform display, analysis and report generation
• Carrying bag
• Soft carrying pouch
• Product warranty card and user manual.
