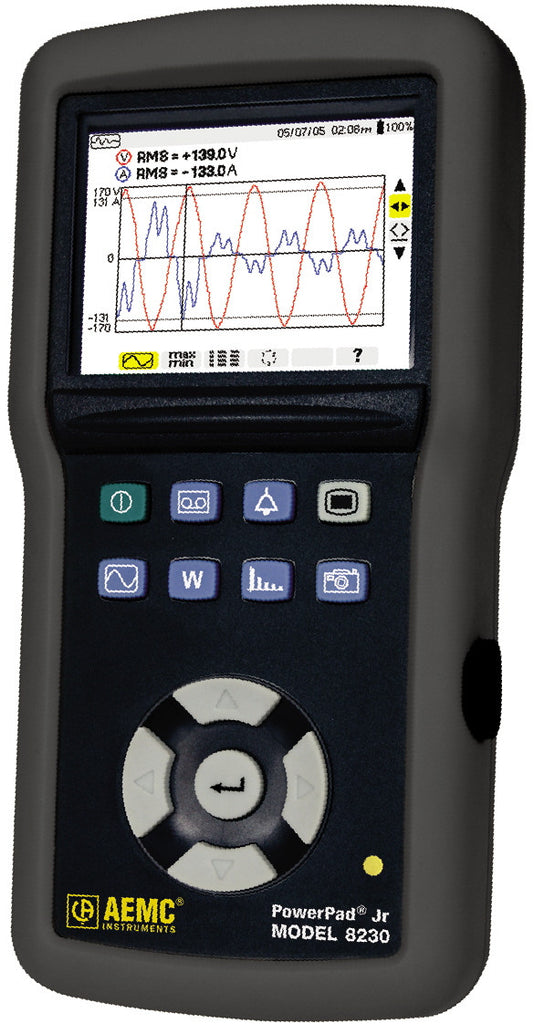

AEMC 8230 Single Phase Power Quality Analyzer with AmpFlex 193-24-BK CT (6500A)

The AEMC 8230 PowerPad® Jr. is an extremely useful and versatile single-phase power quality analyzer that measures and records power, energy and power quality parameters including harmonics and direction of harmonics.

The AEMC 8230 Single Phase Power Quality Analyzer is easy-to-use, compact and shock-resistant. It is intended for technicians and engineers to measure and carry out diagnostic work and power quality work on single- or three-phase balanced load networks.

Users are able to obtain instant waveforms of an electrical network’s principal characteristics, and also monitor their variation over a period of time. The multi-tasking measurement system simultaneously handles all the measurement functions and waveform display of the various magnitudes, detection, continuous recordings and their display without any constraints.

This AEMC 8230 PowerPad Jr. includes 24" Ampflex® 193-24 (6500A). See the available additional kits with different current transformers below.

Applications:

• Motor start-up analysis
• Verification of power distribution circuits
• Measurement and recording of power system quality (kW, VA, VAR)
• Energy metering (kVAh, VARh, kWh)
• In-plant troubleshooting of power distribution panels and individual machinery
• Determine harmonic problems originating from source or load

Purchase the AEMC 8230 PowerPad Jr. alone or with the available Current Transformers below:

• AEMC 8230 w/ 193-36-BK - includes Ampflex 193-36-BK 36" flexible current transformer (6500A)
• AEMC 8230 w/ MN193-BK - includes MN193-BK clamp-on current transformer (6A/120A)
• AEMC 8230 w/ MN93-BK - includes MN93-BK clamp-on current transformer (240A)
• AEMC 8230 w/ MR193-BK - includes MR193-BK clamp-on current transformer (1000AAC/1400ADC)
• AEMC 8230 w/ SR193-BK - includes SR193 clamp-on current transformer (1200A)

Includes:

• PowerPad® Jr. Model 8230,
• One 24" AmpFlex® 193-24 (6500A) sensor (black connector)
• Set of two 10 ft (3m) color-coded leads (red/black) with alligator clips
• Optical USB cable
• US 110V power adapter
• Set of six 1.2V AA NiMH rechargeable batteries
• DataView® software FREE for data storage, real-time waveform display, analysis and report generation
• Carrying bag
• Soft carrying pouch
• Product warranty card and user manual.
