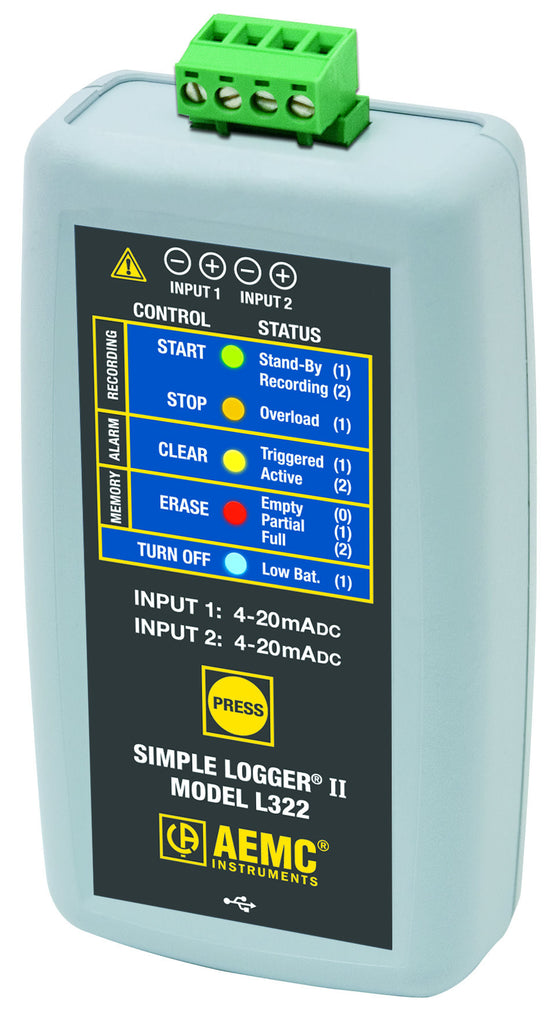

The AEMC L322 Simple Logger II is a two channel 4-20mADC current data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode (XRM®) and delayed start time are just two of the many application friendly features.

The AEMC L322 Simple Logger II records DC current at user selectable rates from 125 minutes to 1 day. Current can be measured up to 25mADC with 0.1mA resolution.  The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software.

Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis

Applications:

• Process control monitoring and troubleshooting
• Sensor monitoring
• General DC current monitoring
• Profile temperature, pressure, flow and other parameters directly
