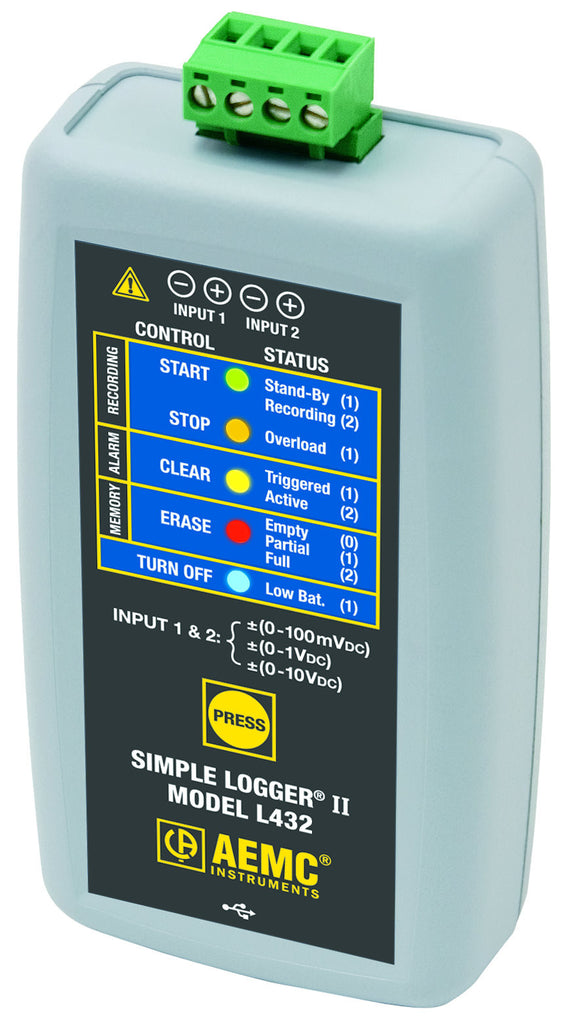

AEMC L432 DC Voltage Logger
$379.00
The AEMC L432 Simple Logger II is a two channel DC data logger. The choice of data storage modes and storage rates allows the operator to effortlessly configure the logger to optimize memory usage to the application at hand. Extended Recording Mode (XRMTM) and delayed start time are just two of the many application friendly features.
The AEMC L432 Simple Logger II records DC voltage at user selectable rates from 8 per second to 1 per day. Voltages can be measured up to 10V with 0.01V resolution in user selectable ranges of 0-100mV, 0-1V and 0-10VDC.
The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software. Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis.
Applications:
The AEMC L432 Simple Logger II records DC voltage at user selectable rates from 8 per second to 1 per day. Voltages can be measured up to 10V with 0.01V resolution in user selectable ranges of 0-100mV, 0-1V and 0-10VDC.
The main advantage of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software. Analog information on the input is sampled and converted to a digital signal. This digital signal is processed and stored along with scale and time information. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis.
Applications:
- Circuit design troubleshooting
- Sensor monitoring
- Battery testing
- Power supply profiling
