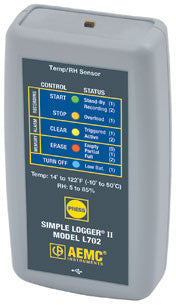

The AEMC L702 Simple Logger® II is a two channel Temperature/Humidity recording device powered by alkaline batteries. It is capable of measuring temperatures from 14 to 122°F (-10 to 50°C) and 5 to 85% RH with resolutions of 0.1 degree and 0.1% RH.

Model L702 stores measurements at user programmable rates of once every 5 seconds to 1 every day. Up to 240,000 measurements can be stored for a period of 45 days or more.

The L702 incorporates a unique capacitive sensor element for measuring relative humidity while temperature is measured by a band-gap sensor. CMOSens® technology guarantees excellent reliability and long term stability with high accuracy.

Analog information on the input is sampled and converted to a digital signal with up to 14 bit resolution. An optically isolated Universal Serial Bus (USB) port provides for the transfer of data from the instrument’s internal memory to the computer for analysis.

One of the main advantages of the logger is its ability to perform a variety of recording tasks with easy and intuitive setup from a computer using DataView® software. DataView® is included with the L702 and provides real time display of measurements, data analysis and report generation.
Features

• Two input channels
• Integral Temperature Humidity sensor
• Programmable storage rates from once every 5 seconds to 1 every day
• Stores up to 240,000 measurements in non-volatile memory
• 3 user selectable storage modes
• Powered by standard Alkaline batteries
• Lightweight, compact, fits anywhere
• 5 LED indicators quickly and clearly display logger status
• Includes DataView® software for data storage, real-time waveform display, analysis and report generation
• USB cable and batteries included
• EN 61010-1; 50V CAT III

Applications

• Clean Rooms
• Blood Banks
• Humidors
• Wine Cellars
• Greenhouses
• Paper Mills
