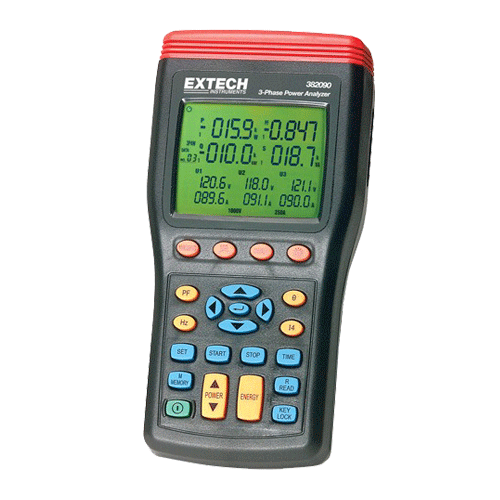

Extech 382090 1000A 3-Phase Power Analyzer/Datalogger

1000A 3-Phase Power Analyzer/Datalogger

Four clamps with simultaneous display

On single phase, 3-phase/3-wire or 3-phase/4-wire systems

Key Features:

• Large backlighting LCD displays 10 parameters simultaneously (kW, kVAR, kVA, PF plus the voltage and current of the 3 phases)
• Up to four current probes can be connected to the analyzer
• Clamp-on True RMS power measurements with software for Harmonics analysis
• Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
• Current measurements to 1000A and Voltage measurements to 600V
• kWH, kVARh and kVAh energy measurements
• Automatically logs up to 20,000 sets of measurements and manually logs up to 99 sets
• Programmable Start/Stop datalogging times
• PC interface with Windows® 95/98/NT/2000/ME/XP compatible software for single and three phase voltage/current Waveform display and Harmonic analysis
• Phase sequence measurements
• Auto power off with disable feature
• CAT III-1000V, UL Listed; CE approved; 1yr warranty
