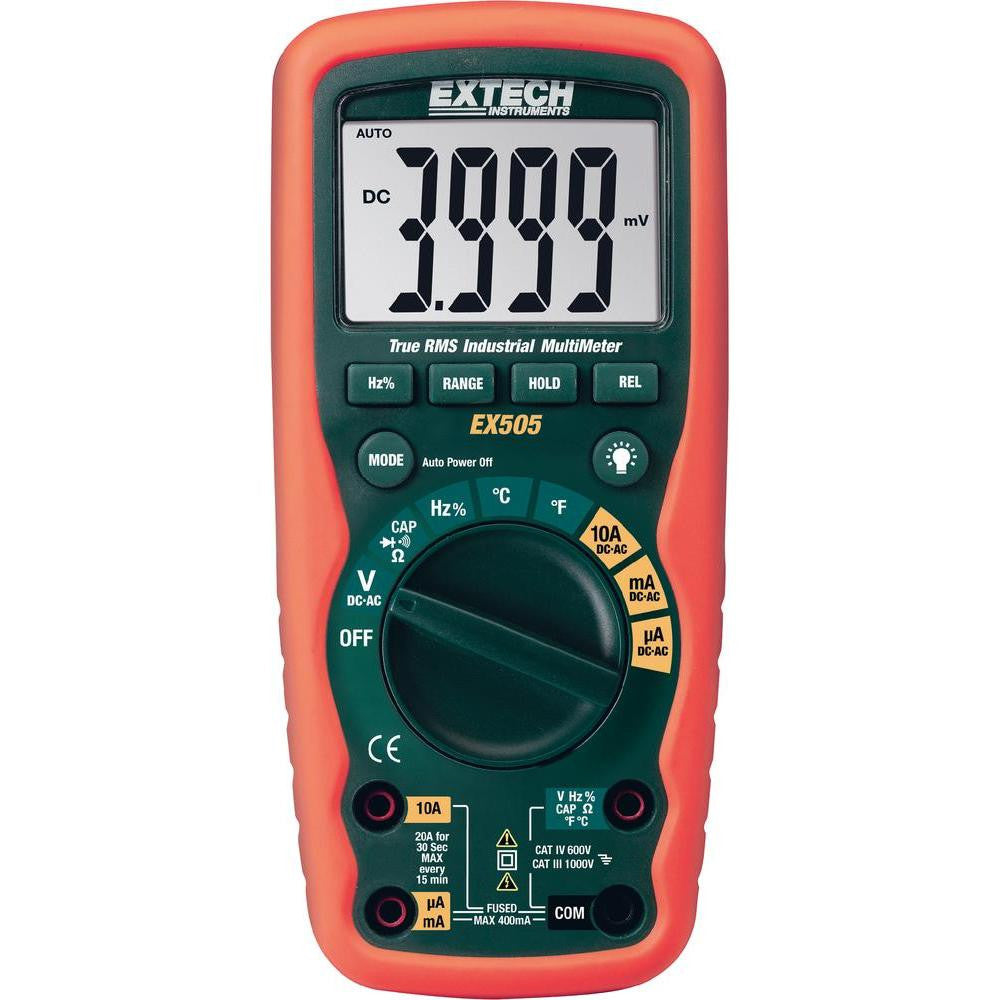

Extech EX505 - Heavy Duty Industrial MultiMeters

Heavy Duty Industrial MultiMeters

Waterproof (IP67) rugged design for heavy duty use

With CAT IV-600V safety rating for industrial applications

Key Features:

• 1000V input protection on all functions
• Dual sensitivity frequency functions
• Large backlit LCD
• Diode open circuit voltage of 2.8V DC
• Auto power off with disable feature
• Complete with double molded test leads, magnetic hanging strap, Type K bead wire temperature probe (EX505, EX520 and EX530), carrying case, and one 9V battery Models: EX503, EX505 (True RMS)
• 4,000 count
• 0.5% accuracy
• Data Hold and Relative
• 10A max current Models: EX510, EX520 (True RMS)
• 6000 count—high resolution
• 0.09% accuracy
• Min/Max/Relative/Data Hold
• 20A max current Model EX530 (True RMS)
• 40,000 count—highest resolution
• 0.06% accuracy
• Min/Max/Relative/Data Hold
• 20A max current
• Peak Hold (AC only)
