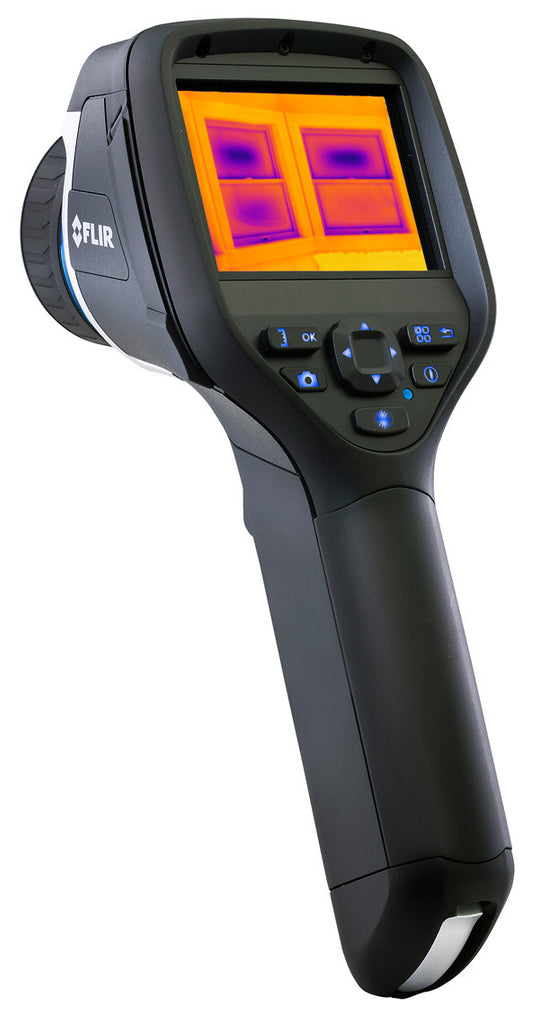

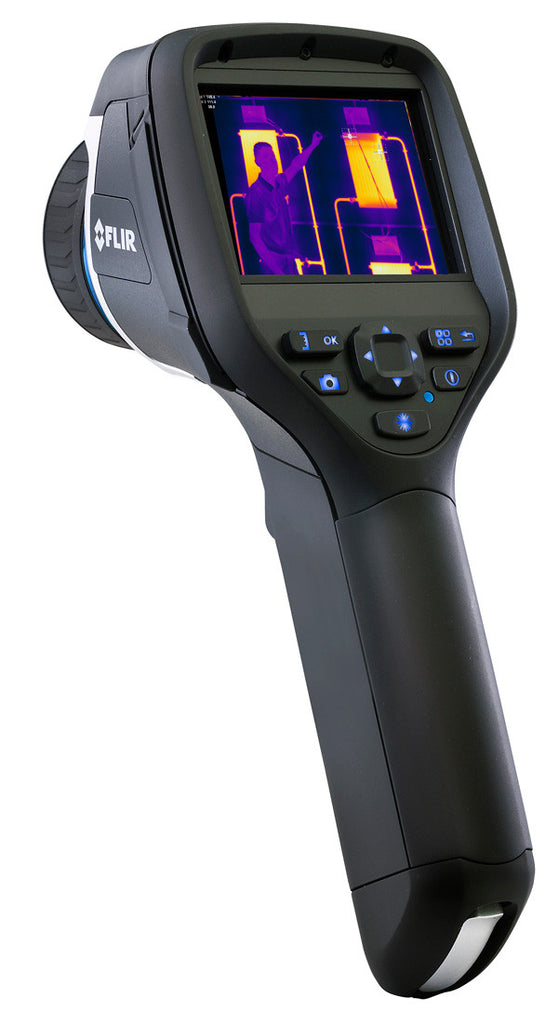

FLIR E30bx Compact Thermal Camera

The FLIR E30bx thermal imaging camera is a compact, lightweight, easy to use thermal imager designed for everyday electrical / mechanical inspections by the novice or intermediate thermographer.

Model Update (February 2012)

FLIR has quietly rolled out a second update to their entire line of E-series cameras. The biggest enhancement is the material changes moving away from previous cameras. This means replacing plastic parts with metal, in order to make all of the E-series rated to withstand damage from a 2-meter drop. The port cover for the video and USB cables is no longer a rigid plastic gate, but a robust rubber shield that adds to the E-30bx’s existing IP54 dustproof and waterproof rating

Enhanced Aspects:
• brighter LCD screen
• control pad has been repositioned
• upgraded battery lid
• upgraded focus grip
• upgraded top cover
• upgraded display cover
• hand-strap holder for lanyards and wrist-ties

FLIR E30bx Key Features :

Building Inpsection Model

As part of the FLIRbx line, this version of the E30 has a more specific temperature range. It also features a dew point alarm and an insulation alarm to indicate where problem areas may be developing.

Temperature

The FLIR E30bx features a 160x120 IR sensor (19,200 temperature measurement points) which updates at 60Hz and delivers temperature measurement with <0.10% thermal sensitivity and 2% accuracy. It features one temperature range suitable for building inspection applications from -4°F to 248°F (-20°C to 120°C)

Hardware

Thermal images are displayed on a 3.5” touch screen with large backlit buttons that fits a bare hand or gloves. The battery is a Li Ion battery that lasts 4 hours continuous use. Memory comes in the form of a 2GB microSD card that stores 1000 images including thermographic data. The manual focus lens is easy-to-use and with a minimum distance of just 4 inches so it can be used for close-up targets. The E30bx features a Visual Light Lamp and Laser Indicator that makes inspecting low light areas easy by illuminating the area and providing a visual reference point. Adding the 2MP Camera gives you the capability of having a standard visual light image and corresponding thermal image in your reports for reference.

Measurement Modes & On-Screen Analysis

This infrared camera offers 4 measurement modes: 1 center spot, 1 area box with min/max indicators, an auto hot/cold spot and an isotherm mode for above or below threshold alarms.

Images & Visualization

Thermal images can be displayed using any of 6 different color palettes or inverted versions of each one for a total of 12 different palettes: Arctic, Gray, Iron, Lava, Rainbow, and Rainbow High Contrast

Communications

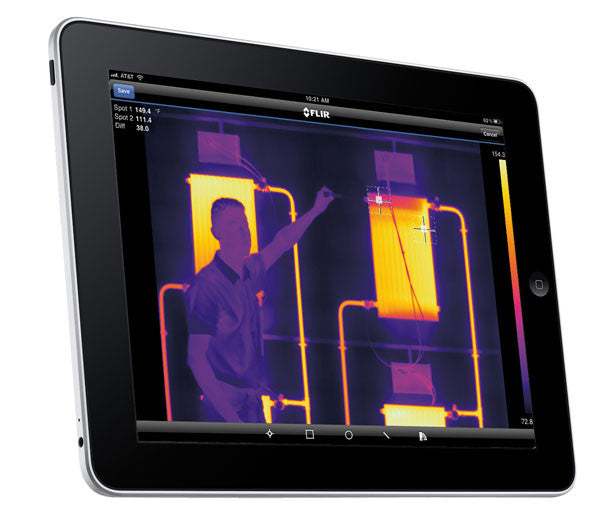

The FLIR E30bx can communicate with iphone, iPad, or Android device using FLIR tools mobile app. This resource allows you to transfer radiometric images wirelessly, assemble a report on your mobile device, and email it without having to sit down in front of a PC.

Industry-Leading Warranty

The FLIR E30bx is backed by FLIR Systems' 2-5-10 Protection warranty. A 5-year warranty on the battery, 10-year warranty on the detector (micro-bolometer) and 2 years warranty on the camera.

What's Included:

• Hard transport case
• Infrared camera
• Battery
• AC Power supply, incl. multi-plug adapters
• Camera lens cap
• USB cable
• Video cable
• Transport case pad lock
• Handstrap
• FLIR Tools software CD-ROM
• MicroSD Memory card (incl. MiniSD & SD Adapters)
• Calibration certificate
• Printed Getting Started Guide
• Printed Important Information Guide
• User documentation CD-ROM
• Warranty extension card or Registration card
• 2 years bumper to bumper full coverage
• 5 year battery warranty, full replacement
• 10 year detector (Micro bolometer) coverage
