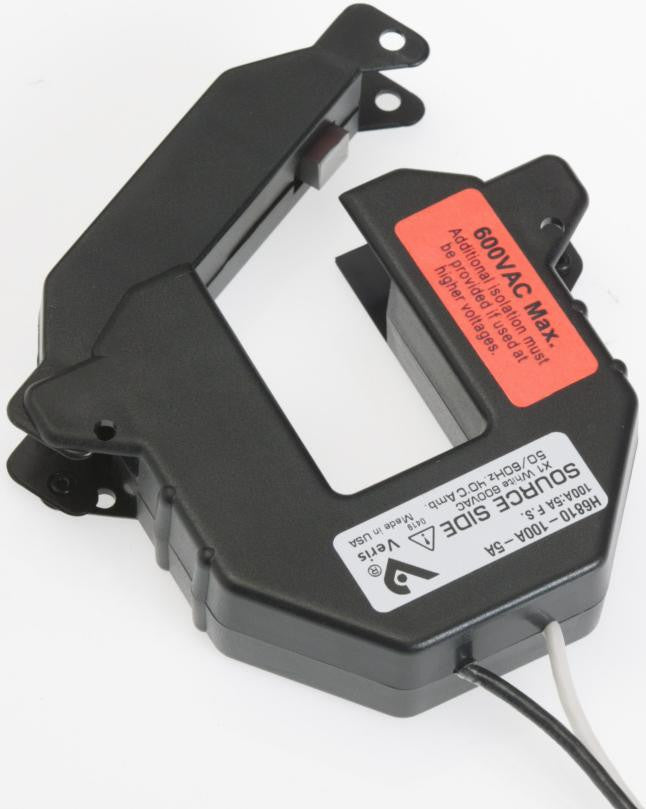

The Hawkeye Series of split-core transformers provide a 0-5AAC output for use with transducers, data loggers, chart recorders and power meters.

SPECIFICATIONS:

Output at Rated Current: 5 Amps AC
Frequency Range: 50/60Hz
Leads: 18 AWG, UL 1015 twisted pair, 6 FT. (1.8m) length
Temperature Range: -15° to 60°C*
Humidity Range: 0-95% non-con densing
Insulation Class: 600VAC


* H6810-100A-5A, accuracy & burden specified at 40°C




H6810-200A-5A	H6811-400A-5A	H6812-800A-5A
H6810-300A-5A	H6811-600A-5A	H6812-1000A-5A
	H6811-800A-5A	H6812-1200A-5A
		H6812-1600A-5A
		H6812-2000A-5A
		H6812-2400A-5A
