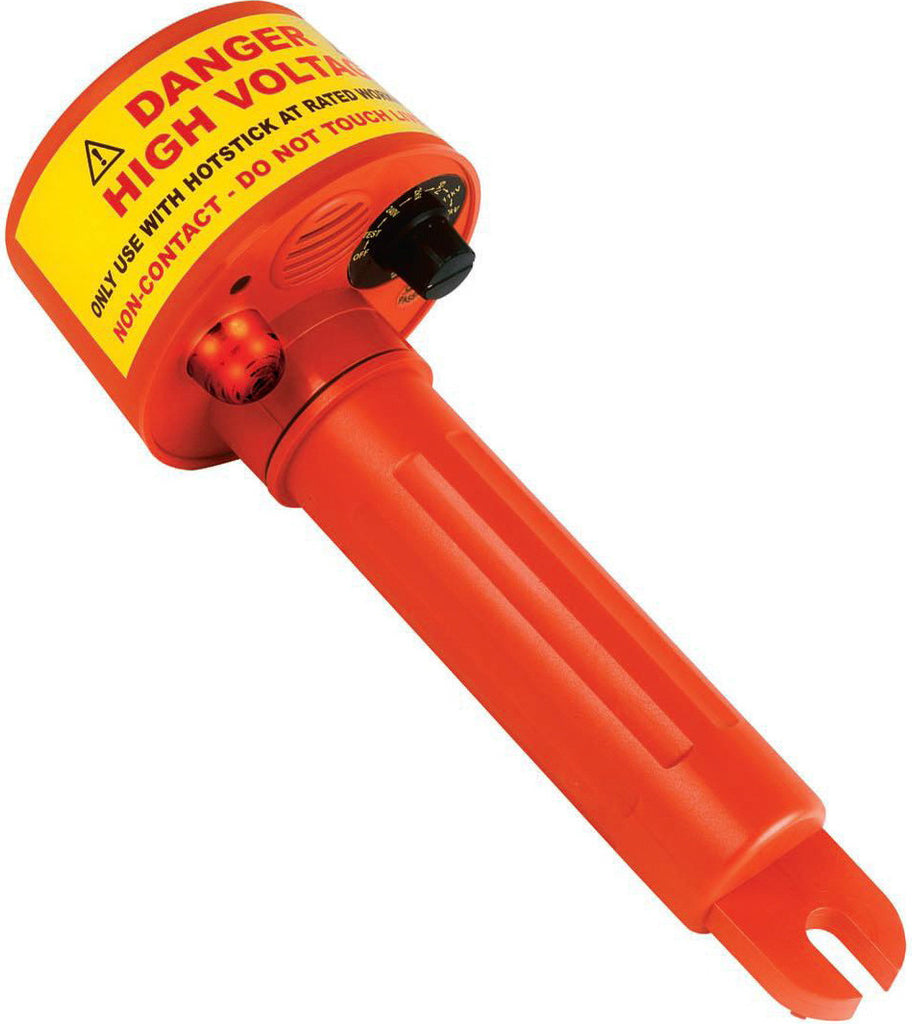

The AEMC 275HD Non-Contact High Voltage Detector is a high voltage detector by proximity.  It is a product designed to warn the use of the presense of voltage in a particular work site.

An eight position rotary switch selects the detection range.  The AEMC 275HVD uses an internal sensor designed to detect the radiated electrical field (V/m) present in energized conductors.  The radiated electrical field increase with the line voltage but decrease with distance and/or shielding.  When an electrical field is detected, a sound annuciator (high pitch-high powered buzzer) and visual indicators (bright LEDs) are triggered ON, warning the operator of live conductors.

The AEMC 275HVD is powered by three standard Alkaline C cell batteries and can be used both in- and out-of-doors. A universal spline on the back-end facilitates attachment to any standard hot stick. A self-test position ensures that all circuitry and annunciators are working properly before use.

Applications:

• Non-contact detection of live voltages
• Check and detect live high voltage cables
• Find faults in cables
• Check grounding equipment
• Service neon lighting
• Trace live wires
• Check high frequency radiation
• Detect residual or induced voltages

We currently have a large inventory of AEMC 275HVDs in stock and ready to ship. Place your order online or call us toll free on 1-877-766-5412 (North America) or 403-256-3636.

• Three C cell batteries
• Padded carrying case
• And user manual
